| Item |
Specifications |
Remark |
| Model No. |
TWE-LI500W |
|
| Rated Power |
500W |
Peak Power: 1000W |
| Battery Capacity |
110000Ah/407Wh |
|
| Battery Type |
High quality li-ion battery |
|

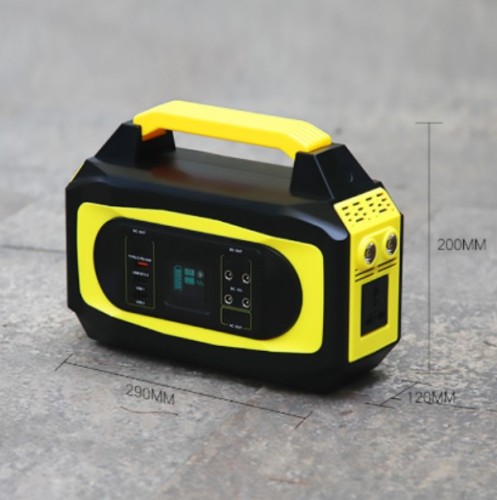

| Product Size |
290*120*200mm |
Length*Width*Height |
| Shell Material |
Plastic |
|
| Output Waveform |
Pure Sine Wave |
|
| Input |
AC: 110V/220V 60Hz/50Hz |
|
| DC: adaptor 19V/3A |
|
| Solar Charging (Anderson interface): 18V 3A max |
|
| Car Charging: 12V 3A |
|
| Output |
AC: 220V 50Hz, 110V 60Hz/50Hz |
|
| 4*DC: 12V±1V/8A max/8A |
|
| 2*USB: 5V/2.1A, 5V/1A |
|
| USB-QC3.0: 5V/3A, 9V/2A, 12V/1.5A |
|
| 1*Type-C: PD45W 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/2.22A |
no cigarette lighter port, can be equipped with transfer wiring (DC head turned to cigarette lighter) |
| LED Lighting |
2W |
|
| Working Temperature |
-10℃~60℃ |
|
| Charging Temperature |
0℃~40 ℃ |
|
| Cycle Life |
≥500 times |
|
| Input Conversion |
90% |
|
| Controller Type |
MPPT |
|
| Protection |
Short circuit, over current, over charge, over discharge, over-load, high temperature protection |
|
-High quality battery: A grade car standard battery
-High safety: with built-in BMS with multipule protection
-Long life time: above 500 times
-Pure sine wave, super high efficiency
-Complete specifications, and can be customized on demand
-20+ Years mature battery factory, worry-free after sales
Lighting, projector, kitchenware, car refrigerator, digital products, outdoor lighting, mobile phones, laptops, stereo, microphone, medical device, emergency rescue, car emergency start, home appliances, backup power, etc.
Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification&Classification Report
01 Incoming Main Control Board Inspection
Fully inspect incoming materials
02 Incoming Enclosure Inspection
Fully inspect incoming materials
03 Laser Carving
Enclosure Printing
04 Face Board Preparation
Prepare for assembling
08 Finished Product Inspection
Fully inspect the finished product
07 Finished Product Aging
06 Semi-finished Product Test
05 Assemble Battery Pack
High quality battery pack produced by our own factory
09 High and Low Temperature Test
10 Finished Product Apperance Full Inspection
11 OQC Shipment Inspection
With 20 years experience in battery field, Topwell can ship the battery by Sea / Air / Express.
We can provide you with all DG certification which allows you to ship these batteries, such
as UN38.3 /MSDS /DG. We can ship from Shenzhen,Shanghai,HK...
