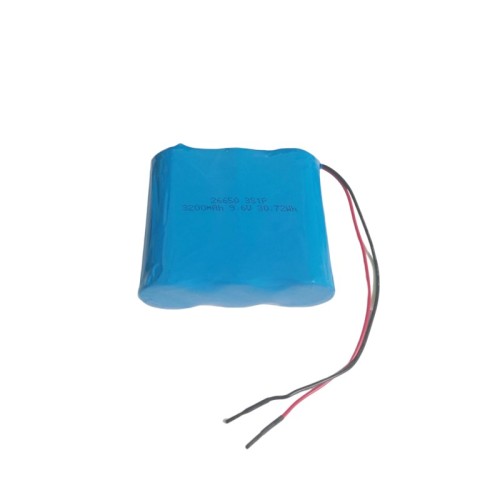

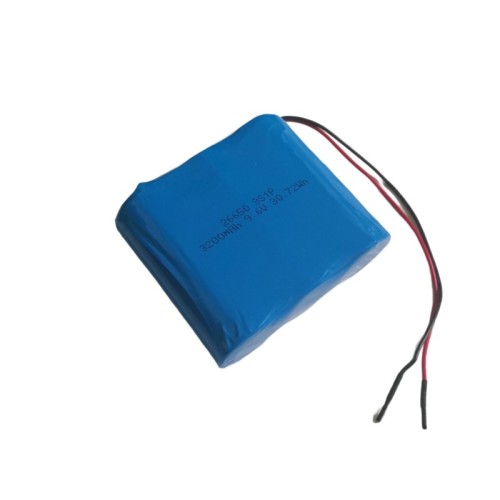

High quality LiFePO4 26650 9.6V 3600mAh rechargeable li-ion battery pack

Item No.: TWE0168
Brand: TWE
Nominal Voltage: 9.6V
Nominal Capacity: 3600mAh
Max Dimensions: 27.5*80.5*70.0mm
Certificate: CE, ROHS, UN38.3, IEC62133, etc.
Warranty: 1 year
Description Brand Introduction Review
Description
Product Specifications
Item Specifications Remark
Model No. LF26650-3600-3S1P
Nominal Voltage 9.6V
Nominal Capacity 3600mAh @0.2C discharge
Dimensions 27.5*80.5*70.0mm max Thickness*Width*Length
Cycle Life ≥2000 times ≥ 80% of the initial capacity
Charge Method CC/CV with lithium battery special charger
Charge Cut-off Voltage 10.95V
Discharge Cut-off Voltage 7.5V
Standard Charge Current 0.2C
Standard Discharge Current 0.2C
Max Continuous Charge Current 1C
Max Continuous Discharge Current 1C
Max Peak Discharge Current 3C
Recommended Operation Ambient Temperature Charge: 0~45℃, Discharge: -20~60℃
Storage Temperature -20℃~25℃ 12 months
-20℃~35℃ 3 months
-20℃~45 ℃ 1 month
Internal Resistance ≤180mΩ
Weight Approx. 290g
Product Advantages
-High safety
-Green and Environmental
-High discharge rate, Low internal resistance
-Good performance in high temperature and low temperature
-High consistency in capacity, voltage, resistance
-Long cycle life over 2000 times, 8-10 years use life
Applications
Solar energy storage system, home energy storage, outdoor power supply, solar street light, lawn lamp, miner's lamp, emergency light, backup power, UPS, communication base station, EV, electric scooter, electric bike, electric motorbike, electric tricycle, golf cart, RV, power tool, garden tool, power bank, small home appliances, etc.
Home Energy Storage
Solar Street Light
Lawn Lamp
Golf Cart
Electric Scooter
Portable Sound System
Certificates
Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification&Classification Report
CE certificate
RoHS certificate
IEC62133 certificate
UN38.3 certificate
ISO9001 certificate
Production Process
01 Materials Mixing
Fully automatic feeding system,High precision, fully enclosed
02 Coating
High precision constant temperature coating machine
03 Electrode Piece Rolling
Precision automatic roller machine
04 Electrode Piece Slitting
Automatic battery electrode piece continuous slitting machine
08 Injection
Fully automatic bell type liquid injection machine
07 Tab Welding&Beading
Automatic welding machine
06 Into Shell
05 Winding
Automatic winding machine
09 Automatic Laser Welding
10 Formation&Capacity Sorting
Needle bed type charging cabinet
11 Cycle Test
All cells will be 100% tested for 3 cycles.
12 OQC Test
100% full test on appreance, voltage, capacity, resistance, size, etc
Packing&Delivery
With 20 years experience in battery field, Topwell can ship the battery by Sea / Air / Express.
We can provide you with all DG certification which allows you to ship these batteries, such
as UN38.3 /MSDS /DG. We can ship from Shenzhen,Shanghai,HK...
Packing
Delivery
Exhibitions
Brand Introduction

Yichun Topwell Power Co., Ltd (Trademark:TWE) established in 2002, is a high-tech enterprise focusing on the R&D, production and sales of lithium polymer batteries, lithium ion batteries, lithium iron phosphate batteries, and lithium thionyl chloride batteries. Products are widely used in consumer electronics, Internet of Things, smart home, medical, vehicle, home and outdoor energy storage, and have obtained CE, RoHS, Reach, UN38.3, IEC62133, CB, UL, MSDS certifications, etc.



Topwell moves on by providing reliable, efficient and intelligent battery solutions to meet different energy needs. We have efficient engineering, production and quality management teams. From raw material procurement, to production, testing, sales and after-sales service, all steps have been controlled by a strict quality management system. Our factory has passed ISO9001, IS014001, BISI certification, SGS, Intertek audit. With the advantages in price, quality and service, we have established long-term and stable cooperative relationships with many well-known brands. Topwell always attached the great importance to the long term cooperation with customers. No matter the order is big or small, we do our best to support you the highest quality with favorable price. We believe that Topwell Power can be your best battery supplier!
