| Item |
Specifications |
Remark |
| Model No. |

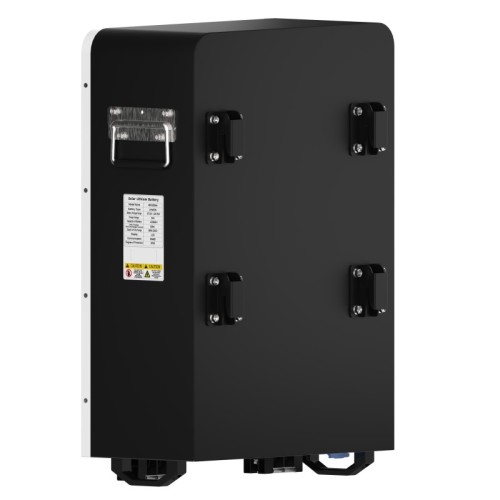

TWE-51.2V100AH |
|
| Nominal Voltage |
51.2V |
|
| Nominal Capacity |
100Ah |
Standard discharge after standard charge |
| Dimensions |
399.5*563*185mm |
Length*Width*Height |
| Cycle Life |
≥6000 times |
80% DOD |
| Charge Cut-off Voltage |
58.4V |
|
| Discharge Cut-off Voltage |
40V |
|
| Standard Charge Current |
20A |
|
| Max Charge Current |
100A |
Recommended: 50A |
| Standard Discharge Current |
20A |
|
| Max Continuous Discharge Current |
100A |
|
| Max Peak Discharge Current |
200A |
|
| Operation Temperature |
Charge: 0℃~45℃, Discharge: -20℃~60℃ |
|
| Storage Temperature |
0℃~35℃ |
|
| Internal Resistance |
≤35mΩ |
|
| Communication Method |
RS485, RS232, CAN |
|
| Housing Material |
Sheet metal shell |
Protection class: IP65 |
| Weight |
Approx. 51kg |
|
| Protection |
Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc. |
|
-High safety: with advanced smart BMS and on/off switch
-High efficiency rate: 98%
-Support max 16pcs in parallel
-6000+ cycle life and 15 years service life
-Perfectly match over 16 brands hybrid inverter
-Good performance in high temperature and low temperature
Solar energy storage system, home energy storage, communication base station, EV charging, RV energy storage, Photovoltaic energy storage, high-speed rail energy storage, industry energy storage, etc.
Communication Base Station
Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification&Classification Report
01 Materials Mixing
Fully automatic feeding system,High precision, fully enclosed
02 Coating
High precision constant temperature coating machine
03 Electrode Piece Rolling
Precision automatic roller machine
04 Electrode Piece Slitting
Automatic battery electrode piece continuous slitting machine
08 Injection
Fully automatic bell type liquid injection machine
07 Tab Welding&Beading
Automatic welding machine
05 Winding
Automatic winding machine
09 Automatic Laser Welding
10 Formation&Capacity Sorting
Needle bed type charging cabinet
11 Cycle Test
All cells will be 100% tested for 3 cycles.
12 OQC Test
100% full test on appreance, voltage, capacity, resistance, size, etc
With 20 years experience in battery field, Topwell can ship the battery by Sea / Air / Express.
We can provide you with all DG certification which allows you to ship these batteries, such
as UN38.3 /MSDS /DG. We can ship from Shenzhen,Shanghai,HK...
