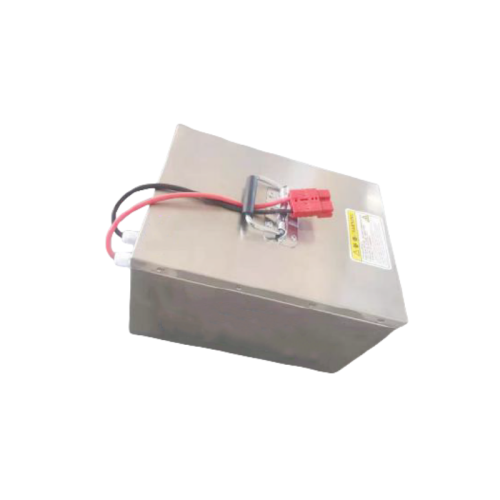

60V 50Ah Li-ion Battery | NMC Lithium-ion Deep Cycle Battery

Item No.: TWE0375
Nominal Voltage: 61.2V
Nominal Capacity: 50Ah
Max Dimensions: 300*230*170mm
Enclosure material: Metal
Waterproof Grade: IP20
Warranty: 1 year
Certificate: CE, RoHS, MSDS, etc
Description Brand Introduction Review
Description
Product Specifications
Item Specifications Remark
Model No. 60V50Ah
Nominal Voltage 61.2V
Nominal Capacity 50Ah Standard discharge after standard charge
Dimensions 300*230*170mm max
Cycle Life ≥800 times ≥ 80% of the initial capacity
Charge Method CC/CV
Charge Cut-off Voltage 72.25V
Discharge Cut-off Voltage 49.3V
Standard Charge Current 10A
Standard Discharge Current 10A
Max Continuous Charge Current 50A
Max Continuous Discharge Current 50A
Max Peak Discharge Current 120A
Recommended Operation Ambient Temperature Charge: 0~45℃ Discharge:-20~60℃
Storage Temperature -20℃~25℃ 12 months
-20℃~45℃ 3 months
-20℃~60 ℃ 1 month
Internal Resistance ≤80mΩ
Weight 20kg
Product Advantages
-High safety
-Real capacity
-Low internal resistance
-Stable discharge voltage
-High consistency in capacity&voltage&resistance
-No fire, no explosion, no leakage
Applications
Bluetooth speaker, flashlight, solar light,intelligent door lock, gps tracker, parking device, medical device, POS machines, power tool, garden tool, sweeper, electric scooter, electric bike, outdoor power supply, etc
Bluetooth Speaker
Flashlight
Solar Light
Sweeper
Electric Scooter
Electric Bike
Certificates
Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification&Classification Report
CE certificate
RoHS certificate
IEC62133 certificate
UN38.3 certificate
ISO9001 certificate
Production Process
01 Materials Mixing
Fully automatic feeding system,High precision, fully enclosed
02 Coating
High precision constant temperature coating machine
03 Electrode Piece Rolling
Precision automatic roller machine
04 Electrode Piece Slitting
Automatic battery electrode piece continuous slitting machine
08 Injection
Fully automatic bell type liquid injection machine
07 Tab Welding&Beading
Automatic welding machine
06 Into Shell
05 Winding
Automatic winding machine
09 Automatic Laser Welding
10 Formation&Capacity Sorting
Needle bed type charging cabinet
11 Cycle Test
All cells will be 100% tested for 3 cycles.
12 OQC Test
100% full test on appreance, voltage, capacity, resistance, size, etc
Packing&Delivery
With 20 years experience in battery field, Topwell can arrange the battery ship by Sea / Air / Express.
We can provide you with all DG certification which allows you to ship these batteries,
such as UN38.3 /MSDS /DG. We can ship from Shenzhen,Shanghai,HK...
Packing
Delivery
Exhibitions
Brand Introduction

Yichun Topwell Power Co., Ltd (Trademark:TWE) established in 2002, is a high-tech enterprise focusing on the R&D, production and sales of lithium polymer batteries, lithium ion batteries, lithium iron phosphate batteries, and lithium thionyl chloride batteries. Products are widely used in consumer electronics, Internet of Things, smart home, medical, vehicle, home and outdoor energy storage, and have obtained CE, RoHS, Reach, UN38.3, IEC62133, CB, UL, MSDS certifications, etc.



Topwell moves on by providing reliable, efficient and intelligent battery solutions to meet different energy needs. We have efficient engineering, production and quality management teams. From raw material procurement, to production, testing, sales and after-sales service, all steps have been controlled by a strict quality management system. Our factory has passed ISO9001, IS014001, BISI certification, SGS, Intertek audit. With the advantages in price, quality and service, we have established long-term and stable cooperative relationships with many well-known brands. Topwell always attached the great importance to the long term cooperation with customers. No matter the order is big or small, we do our best to support you the highest quality with favorable price. We believe that Topwell Power can be your best battery supplier!
