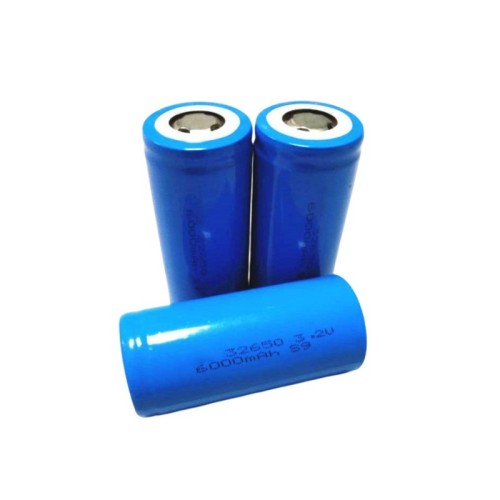

32650 lithium iron phosphate battery 3.2V 6000mAh 32650 LiFePO4 battery for emergency light

Item No.: TWE0132
Brand: TWE
Nominal Voltage: 3.2V
Nominal Capacity: 6000mAh
Max Dimensions: 32.5*70.5mm
Certificate: CE, ROHS, UN38.3, IEC62133, etc
Warranty: 1 year
Description Review
Description
Product Specifications
Item Specifications Remark
Model No. LF32650-6000
Nominal Voltage 3.2V
Nominal Capacity 6000mAh @0.2C discharge
Dimensions 32.5*70.5mm max Diameter*Height
Cycle Life ≥2000 times ≥ 80% of the nominal capacity
Charge Method CC/CV lithium battery special charger
Charge Cut-off Voltage 3.65V
Discharge Cut-off Voltage 2.0V
Standard Charge Current 0.2C
Standard Discharge Current 0.2C
Max Continuous Charge Current 1C
Max Continuous Discharge Current 1C
Max Peak Discharge Current 3C
Recommended Operation Ambient Temperature Charge: 0~45℃ Discharge:-20~60℃
Storage Temperature -20℃~25℃ 12 months
-20℃~35℃ 3 months
-20℃~45 ℃ 1 month
Internal Resistance ≤15mΩ
Weight Approx. 141g
Product Advantages
-High safety
-Green and Environmental
-High discharge rate, Low internal resistance
-Good at high temperature and low temperature environment
-High consistency in capacity&voltage&resistance
-Long cycle life over 2000 times, 8-10 years use life
Applications
Solar energy storage system, home energy storage, outdoor power supply, solar street light, lawn lamp, miner's lamp, emergency light, backup power, UPS, communication base station, EV, electric scooter, electric bike, electric motorbike, electric tricycle, golf cart, RV, power tool, garden tool, power bank, small home appliances, etc.
Home Energy Storage
Solar Street Light
Lawn Lamp
Golf Cart
Electric Scooter
Portable Sound System
Certificates
Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification&Classification Report
CE certificate
RoHS certificate
IEC62133 certificate
UN38.3 certificate
ISO9001 certificate
Production Process
01 Materials Mixing
Fully automatic feeding system,High precision, fully enclosed
02 Coating
High precision constant temperature coating machine
03 Electrode Piece Rolling
Precision automatic roller machine
04 Electrode Piece Slitting
Automatic battery electrode piece continuous slitting machine
08 Injection
Fully automatic bell type liquid injection machine
07 Tab Welding&Beading
Automatic welding machine
06 Into Shell
05 Winding
Automatic winding machine
09 Automatic Laser Welding
10 Formation&Capacity Sorting
Needle bed type charging cabinet
11 Cycle Test
All cells will be 100% tested for 3 cycles.
12 OQC Test
100% full test on appreance, voltage, capacity, resistance, size, etc
Packing&Delivery
With 20 years experience in battery field, Topwell can ship the battery by Sea / Air / Express.
We can provide you with all DG certification which allows you to ship these batteries, such
as UN38.3 /MSDS /DG. We can ship from Shenzhen,Shanghai,HK...
Packing
Delivery
