Product Description
Optimized Power Solutions for Industrial and Technical Users
Designed to meet the rigorous demands of engineering, this 18650 lithium ion battery delivers high energy density and durability essential for professional system integration. Our battery supplier ensures consistent output and long lifecycle benefits, making this high capacity 18650 battery suitable for applications requiring enhanced reliability and controlled performance parameters. This product serves industries including electronics manufacturing, electric mobility, and power tools, where stable energy sources directly impact operational efficiencies and return on investment.
Precision Engineering and Technical Specifications
This 18650 battery 3500mah model combines measurable specifications with strict quality standards to guarantee peak operational characteristics. Featuring a nominal capacity of 3500mAh and superior internal resistance control, it supports rapid charge-discharge cycles with minimal voltage drop. The design ensures compatibility across a wide range of electronic systems, emphasizing longevity and safety. As recognized lithium ion battery manufacturers, our product undergoes stringent testing to meet certification requirements and satisfy high-level engineering benchmarks in complex applications.
Applications Enhancing System Efficiency and Industrial Productivity
The versatility of this high capacity 18650 battery facilitates its deployment across critical sectors including medical device manufacturing, security hardware, and outdoor equipment production. Its superior energy density and consistent output allow companies to enhance system reliability while reducing maintenance downtime. Battery suppliers benefit from its modular compatibility, ensuring seamless integration into existing assemblies and sustainable supply chain management practices to satisfy global industry standards.
| Item |
Specifications |
Remark |
| Model No. |
Li26650-70HP |
|
| Nominal Voltage |
3.6V |
|
| Nominal Capacity |
6800mAh |
Standard discharge after standard charge |

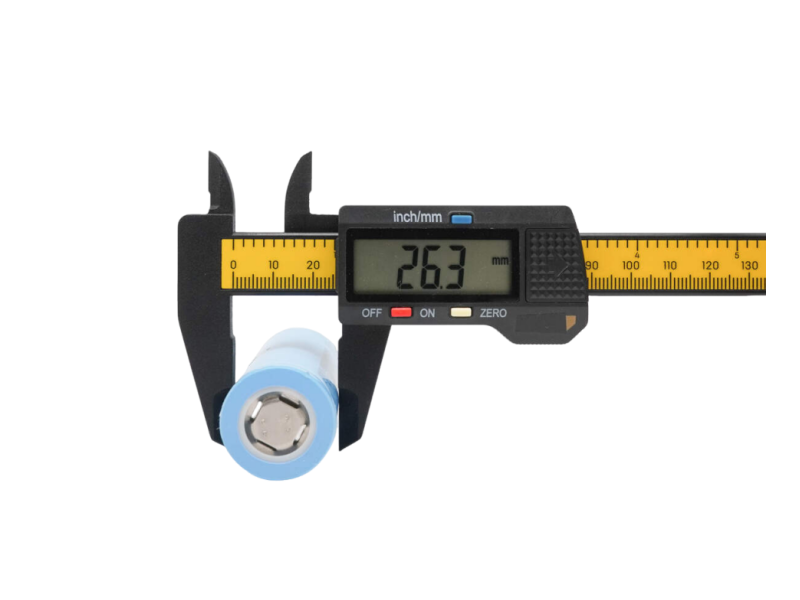

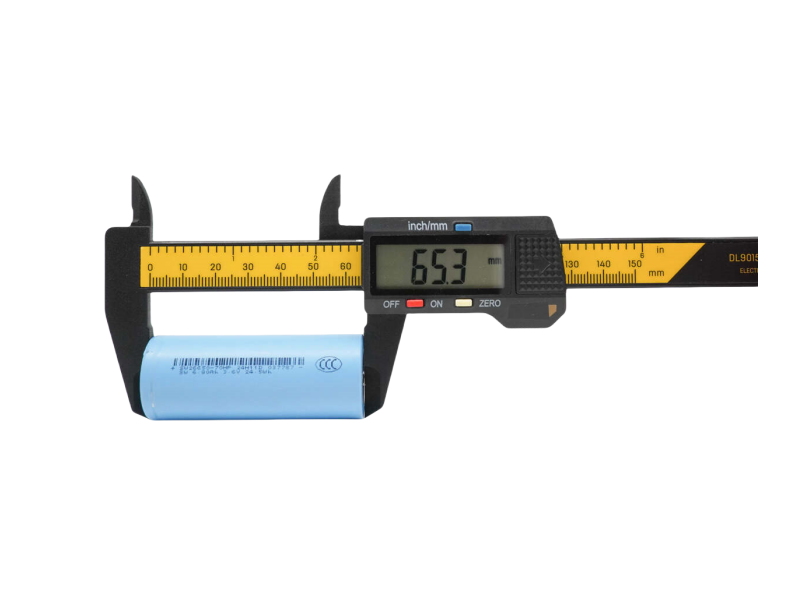

| Dimensions |
26.5*65.4mm max |
Diameter*Height |
| Cycle Life |
≥500 times |
≥ 80% of the initial capacity |
| Charge Method |
CC/CV with professional charger |
|
| Charge Cut-off Voltage |
4.2V |
|
| Discharge Cut-off Voltage |
2.5V |
|
| Standard Charge Current |
0.2C |
|
| Standard Discharge Current |
0.2C |
|
| Max Continuous Charge Current |
1C |
10℃≤Temp＜45℃ |
| Max Continuous Discharge Current |
2C (14A) |
|
| Max Peak Discharge Current |
3C (21A) |
|
| Recommended Operation Ambient Temperature |
Charge: 0~45℃, Discharge:-40~60℃ |
|
| Low Temperature Discharge Capacity (-40℃) |
≥60% |
|
| Storage Temperature |
-20℃~25℃ |
12 months |
| -20℃~45℃ |
3 months |
| -20℃~60 ℃ |
1 month |
| Internal Resistance |
≤25mΩ |
|
| Weight |
105±2g |
|
-High safety
-Real capacity
-Low internal resistance
-Stable discharge voltage
-High consistency in capacity&voltage&resistance
-No fire, no explosion, no leakage
Bluetooth speaker, flashlight, solar light,intelligent door lock, gps tracker, parking device, medical device, POS machines, power tool, garden tool, sweeper, electric scooter, electric bike, outdoor power supply, etc
Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification&Classification Report
01 Materials Mixing
Fully automatic feeding system,High precision, fully enclosed
02 Coating
High precision constant temperature coating machine
03 Electrode Piece Rolling
Precision automatic roller machine
04 Electrode Piece Slitting
Automatic battery electrode piece continuous slitting machine
08 Injection
Fully automatic bell type liquid injection machine
07 Tab Welding&Beading
Automatic welding machine
05 Winding
Automatic winding machine
09 Automatic Laser Welding
10 Formation&Capacity Sorting
Needle bed type charging cabinet
11 Cycle Test
All cells will be 100% tested for 3 cycles.
12 OQC Test
100% full test on appreance, voltage, capacity, resistance, size, etc
With 20 years experience in battery field, Topwell can arrange the battery ship by Sea / Air / Express.
We can provide you with all DG certification which allows you to ship these batteries,
such as UN38.3 /MSDS /DG. We can ship from Shenzhen,Shanghai,HK...
FAQ
What makes your -40°C Low Temperature 26650 lithium ion battery suitable for cold environments?
Our battery is engineered to operate reliably at temperatures down to -40°C, maintaining at least 60% capacity under extreme cold. With low internal resistance and stable discharge voltage, it ensures consistent performance even in harsh outdoor or industrial settings where typical batteries fail.
Do you offer customization options for battery specifications or packaging?
We are a leading lithium ion battery manufacturer with flexible production capabilities. While standard models like the 26650 6800mAh battery are available, we can discuss custom voltage, capacity, or packaging solutions to meet your specific industrial requirements. Contact us to explore tailored options.
How should I install and maintain the 26650 3.6V battery for reliable longevity?
For optimal cycle life, charge the battery using CC/CV methods, avoiding overcharge above 4.2V or deep discharge below 2.5V. Operate within recommended temperatures (charge 0~45°C, discharge -40~60°C). Proper storage at -20~25°C for 12 months helps preserve capacity and safety.
What delivery options and support do you provide as a battery supplier?
As a trusted battery supplier, we ship worldwide with international certifications like CE, ROHS, and UN38.3 to ensure compliance. Our team supports logistics and export documentation, helping you receive safe, certified batteries suitable for industrial use anywhere. Contact us for detailed shipping info.
